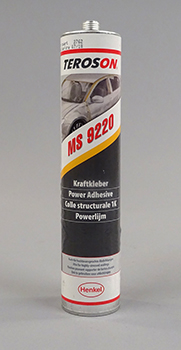

TEROSON MS 9220 BLACK IN 310 ML CARTRIDGE

(Code: 02-10440-01)

Data Sheet
31.26 €
Add to cart
TEROSON MS 9220 BLACK IN 310 ML CARTRIDGE

TEROSON MS 9220 BLACK - CARTRIDGE 310 ML



Teroson MS 9220 is a one component adhesive with high sag resistance, based on MS-Polymer.



Characteristics
  • Cures by reaction with humidity to an elastic product
  • The skin formation and curing times are dependent on humidity and temperature
  • The curing time also depends on joint depth
  • By increasing the temperature and humidity, the reaction time can be reduced
  • Free of solvents, isocyanates, silicones and PVC
  • Has only a weak odour (after curing it is odourless)
  • Good adhesion to many substrates
  • Good resistance to UV-light


Application
TEROSON MS 9220 is used in the areas :
  • vehicle body manufature
  • bus manufacture
  • vehicle body build-ups
  • caravan
  • ship and boat building


Technical characteristics
  • Colour : black
  • Odour : odourless
  • Consistancy : thixotropic paste
  • Density : approx. 1,4 g/cm³
  • Skin formation time* : approx. 6 min
  • Tack-free time : approx. 20 to 30 min
  • Cure rate : approx. 3,5 mm/24 h
  • Shore-A-hardness (DIN 53505): approx. 60
  • Tensile strength (acc. to DIN 53504) : approx. 3,3 MPa
  • Tensile shear strength (DIN EN 1465) : 4,4 MPa
  • Substrates: painted sheet metal
  • Layer thickness : 0,2 mm
  • Cross head speed : 10 mm/min
  • Volume change (acc. to DIN 52451) : < 2%
  • Application temperature : +15°C to +35°C
  • In service temperature range : -40°C to +100°C
  • Short exposure (up to 1 h) : +120°C

* DIN 50014 standard climate : 23°C, 50% relative air humidity
