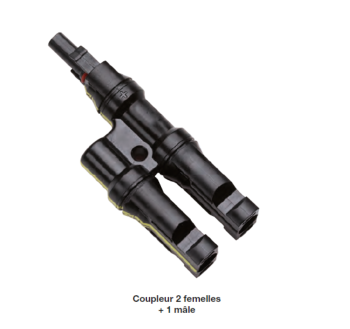

MECATRACTION CSFFM4 - FEMALE-FEMALE / MALE COUPLER
Connecting device for photovoltaic plug-in system solution with the use of a tool.
The products are compliant with TÜV standards.
This connecting system is resistant to UV, Ozone and is IP67 making it compatible with the market standards.
General features
- Contact material: silvered copper
- Box material: Polycarbonate / Polyamide
- Contact diameter: 4 MM
- Acceptable wire sizes: 4 to 6 MM²
- Cable insulation diameter: 5 to 8 MM
- Contact type: to be crimped
- Temperature : -40 °C / +85 °C
