Backing : Nomex / Polyester
Adhesive : Acrylic
Backing thickness : 0,09 mm
Total thickness : 0,13 mm
Thermal class : 155 °C

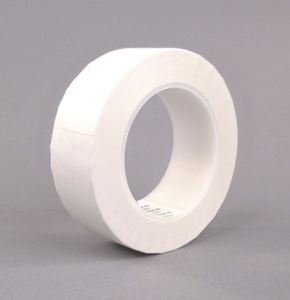

Isotape 4350PV3 is a laminated tape based with Nomex and a polyester foil.
This combination with a thermosetting acrylic adhesive provides an excellent insulation for all applications when high temperature resistance is requested.
Applications :
- Ground insulation for electrical motors
- Non adhesive insulation tapes reinforcement
- Interlayer insulation for H class transformers
|
