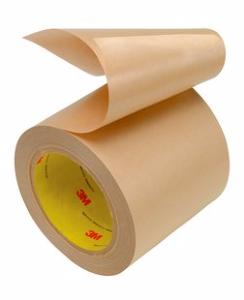

3M 9703 WIDTH 25,4 MM IN ROLL OF 33 M

3M 9703 - ADHESIVE TRANSFER TAPE

3M Electrically Conductive Adhesive Transfer Tape (ECATT) 9703 is a pressure sensitive adhesive (PSA) transfer tape with anisotropic electrical conductivity.

The PSA matrix is filled with conductive particles which allow interconnection between substrates through the adhesive thickness (the "Z-axis”) but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive.

The PSA tack properties and lack of any thermal curing make 3M ECATT 9703 easy to use in assembly operations.

- Adhesive : Acrylic

- Color : Clear

- Thickness : 0,05 mm

- Temperature maximum : +70 °C

3M Electrically Conductive Adhesive Transfer Tape (ECATT) 9703 is ideal for interconnection of flexible circuits with other flexible circuits (flex), rigid printed circuit boards (PCB) or LCD screens.

Applications include polyester flex circuit splicing, keyboard manufacturing, LCD assembly and many others.

3M ECATT 9703 is also ideal for EMI/RFI shield and gasket attachment applications.

Applications include EMI shields for displays and gasket attachment to EMI/RFI cabinets and enclosures.
