3M 92 WIDTH 50 MM IN ROLL OF 33 M

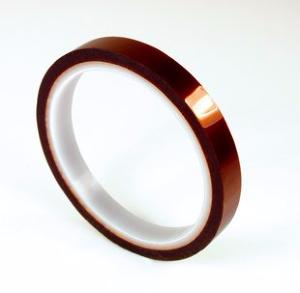

3M 92 POLYIMIDE FILM TAPE - 50 MM x 33 M

3M Polyimide Film Electrical Tape 92 is a 1-mil polyimide film backing with silicone adhesive.

Its silicone pressure sensitive adhesive allows it to be used at 356ºF (180ºC), and it is UL 510 Flame Retardant.

- Backing : Polyimide

- Color : Amber

- Thickness : 0,08 mm

- Adhesion to steel : 2,2 N/10mm

- Elongation at break : 55 %

- Thermal class : +180 °C

- Dielectric Breakdown : 7500 V

- UL510 recognition

3M Tape 92 is used for high temperature electrical applications in which a tough, thin insulating material is required for wrapping coils, transformers, capacitors, wire harnesses, and for anchoring leads / terminal boards.

It also is used in printed circuit board assembly as a wave solder masking tape.
