3M 91 AB 116 SCOTCHCAST RESIN KIT

(Code: 92-10825-01)

Data Sheet
Discontinued Product
Currently out of stock.

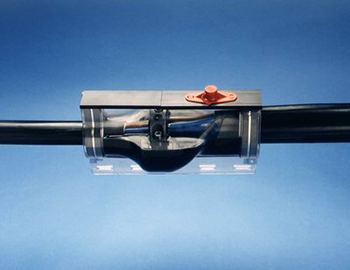

3M 91 AB 116 SCOTCHCAST RESIN KIT


3M RESIN KIT 91 AB 116 - INCLINE AND BRANCH JOINT KIT



3M Scotchcast resin joint kits 91-AB 11x are designed to be used for 1-core up to 5-core non shielded polymeric low voltage energy cables for Inline - and Branch application.

The application incorporates electrical insulation and mechanical protection of joints with compression or mechanical connectors.
It can be used for indoor and outdoor, underground and submerged applications.

Features :
- Section Main cable: 4 x 120 – 4 x 185 MM² and 4 x 95 - 4 x 150 MM²
- Section Branch cable : 4 x 35 – 4 x 70 MM² and 4 x 25 - 4 x 50 MM²
- Diameter Main cable : 58 MM max
- Diameter Branch cable : 35 MM max
- Resin 470 in transparent bags with integrated Closed Mixing and Pouring (CMP) system.
- Two part transparent Mould Body with closing rails for quick and easy handling and CMP adapter
- Closure cap to prevent any pollution.
- Pre cut foam sealing elements to provide reliable sealing to the Mould Body without tooling for all cable application diameters.

Kit content :
- Transparent mould body
- Closing rail
- CMP adapter with closure cap
- Scotchcast 470 resin bag with CMP
- Pre-cut sealing elements
- Abrasive strip
- Detailed instruction
