3M 79 WIDTH 30 MM IN ROLL OF 55 M

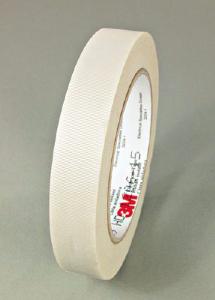

3M 79 GLASS CLOTH ELECTRICAL TAPE - 30 MM x 55 M

3M Glass Cloth Electrical Tape 79 is a 7-mil woven insulating glass cloth tape with an acrylic pressure-sensitive adhesive.

This tape is used to electrically insulate and provide mechanical protection at temperatures to 302° F (150° C).

This tape provides insulation and solvent-resistant protection for use as coil cover, anchor, banding and core, layer and crossover insulation.

It is edge-tear resistant, conformable and printable.

It also features an excellent absorption of resin and varnishes.

- Backing : Glass cloth

- Color : White

- Adhesive : Acrylic

- Total thickness : 0,18 mm

- Adhesion to steel : 3,3 N/10mm

- Elongation at break : 5 %

- Range of use : -50 °C / +155 °C

- Dielectric Breakdown : 3000 V

- UL510 recognition

- Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection

- Used for banding and strapping applications up to 150°C
