3M 79 WIDTH 25 MM IN ROLL OF 55 M

(Code: 92-10048-03)

Data Sheet
44.01 €
Currently out of stock.
Add to cart
3M 79 WIDTH 25 MM IN ROLL OF 55 M

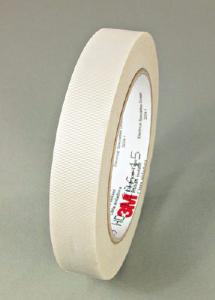

3M 79 GLASS CLOTH ELECTRICAL TAPE - 25 MM x 55 M



3M Glass Cloth Electrical Tape 79 is a 7-mil woven insulating glass cloth tape with an acrylic pressure-sensitive adhesive.

This tape is used to electrically insulate and provide mechanical protection at temperatures to 302° F (150° C).
This tape provides insulation and solvent-resistant protection for use as coil cover, anchor, banding and core, layer and crossover insulation.
It is edge-tear resistant, conformable and printable.
It also features an excellent absorption of resin and varnishes.

Features :
- Backing : Glass cloth
- Color : White
- Adhesive : Acrylic
- Total thickness : 0,18 mm
- Adhesion to steel : 3,3 N/10mm
- Elongation at break : 5 %
- Range of use : -50 °C / +155 °C
- Dielectric Breakdown : 3000 V
- UL510 recognition

Applications :
- Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection
- Used for banding and strapping applications up to 150°C
