3M 434 WIDTH 50 MM IN ROLL OF 55 M

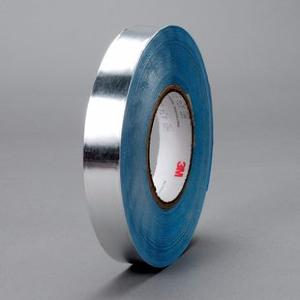

3M 434 VIBRATION DAMPING TAPE - 50 MM x 55 M



3M Vibration Damping Tapes are low temperature 3M Viscoelastic Damping Polymers coated on a dead soft aluminum foil constraining layer.

They have pressure sensitive properties and are furnished in roll form and designed for direct, pressure sensitive application to metal and composite panels for vibration damping purposes.
The combination of the low temperature 3M viscoelastic polymers and an aluminum constraining layer has proven to be an unique construction with exceptional ability to damp resonant vibrations in the temperature range of -76° to +68°F (-60° to +20°C).

Features :
- Backing : Aluminum
- Color : Silver
- Adhesive : Polymer
- Backing thickness : 0,14 mm
- Total thickness : 0,19 mm
- Adhesion to steel : 710 cN/cm
- Elongation at break : 12 %
- Use of range : -60 °C / +20 °C

Applications :
- For lower temperature aerospace and industrial applications.
- Reduce unwanted resonant noise, vibration and fatigue in metal panels and support structures.
- Chutes, conveyors, bins, metal shop boxes and tables where metal contact with materials can result in unwanted vibration.
