3M 27 WIDTH 9 MM IN ROLL OF 55 M

(Code: 92-10046-01)

Data Sheet
20.98 €
Currently out of stock.
(Sold in packs of 26)
Add to cart
3M 27 WIDTH 9 MM IN ROLL OF 55 M

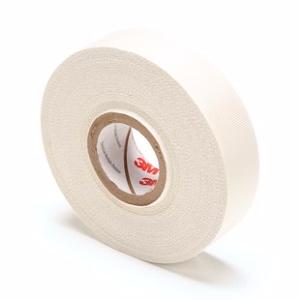

3M 27 GLASS CLOTH ELECTRICAL TAPE - 9 MM x 55 M



3M Glass Cloth Electrical Tape 27 is a 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive.

This tape is designed to operate in 600-volt dry applications requiring high mechanical strength and resistance to high temperatures.
The glass cloth is specially treated and prepared to provide corrosion-free protection.
The glass cloth will not shrink, rot or burn, has a high tensile strength and is printable.

Features :
- Backing : Glass cloth
- Color : White
- Adhesive : Rubber
- Total thickness : 0,165 mm
- Adhesion to steel : 4,4 N/10mm
- Elongation at break : 5 %
- Range of use : -50 °C / +130 °C
- Dielectric Breakdown : 3000 V
- UL510 recognition

Applications :
- Insulating electric and induction-type furnace power supply leads
- Securing systems requiring high mechanical strength and resistance to high temperatures
- Splicing wire SF and SFF rated 302° F (150° C), 356° F (180° C)
- Insulating motor lead connectors, switchers and controls for furnaces and ovens
- Insulation in coil wrapping outerwrap
- Provides heat stable insulation for hot spot applications
