3M 27 WIDTH 19 MM IN ROLL OF 55 M

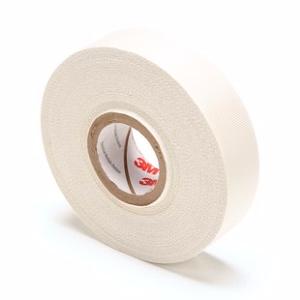

3M 27 GLASS CLOTH ELECTRICAL TAPE - 19 MM x 55 M

3M Glass Cloth Electrical Tape 27 is a 7-mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive.

This tape is designed to operate in 600-volt dry applications requiring high mechanical strength and resistance to high temperatures.

The glass cloth is specially treated and prepared to provide corrosion-free protection.

The glass cloth will not shrink, rot or burn, has a high tensile strength and is printable.

- Backing : Glass cloth

- Color : White

- Adhesive : Rubber

- Total thickness : 0,165 mm

- Adhesion to steel : 4,4 N/10mm

- Elongation at break : 5 %

- Range of use : -50 °C / +130 °C

- Dielectric Breakdown : 3000 V

- UL510 recognition

- Insulating electric and induction-type furnace power supply leads

- Securing systems requiring high mechanical strength and resistance to high temperatures

- Splicing wire SF and SFF rated 302° F (150° C), 356° F (180° C)

- Insulating motor lead connectors, switchers and controls for furnaces and ovens

- Insulation in coil wrapping outerwrap

- Provides heat stable insulation for hot spot applications
