3M 1350F-Y1 WIDTH 50 MM IN ROLL OF 66 M

(Code: 92-10053-06)

Data Sheet
19.83 €
In Stock
(19 Item(s) In Stock)
Add to cart

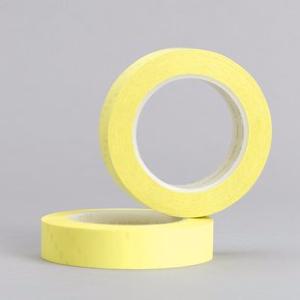

3M 1350F-Y1 WIDTH 50 MM IN ROLL OF 66 M

3M 1350F-Y1 YELLOW POLYESTER TAPE - 50 MM x 66 M



3M 1350 Tape is an electrical insulating polyester film tape, which meets the flame-retardancy requirements of UL 510.

It consists of materials that are represented in many UL Recognized Insulation Systems and has a UL 130°C temperature rating.
It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment.

Features :
- Backing : Polyester
- Color : Yellow
- Adhesive : Acrylic
- Backing thickness : 0,025 mm
- Total thickness : 0,06 mm
- Adhesion to steel : 3,3 N/10mm
- Elongation at break : 75 %
- Range of use : -50 °C / +130 °C
- Dielectric Breakdown : 5000 V
- UL510 recognition

Applications :
3M 1350 Tape is especially suited for applications such as wrapping coils, capacitors, wire harnesses, transformers, shaded pole motors and fractional horsepower motors.
