3M 1345 WIDTH 19 MM IN ROLL OF 16,5 M

(Code: 92-10067-03)

Data Sheet
62.11 €
Currently out of stock.
Add to cart

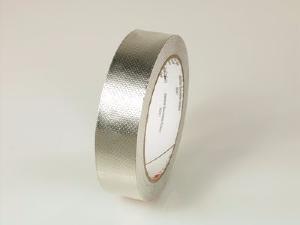

3M 1345 WIDTH 19 MM IN ROLL OF 16,5 M

3M 1345 EMBOSSED COPPER TAPE - 19 MM x 16,5 M



3M 1345 Tape consists of an embossed 1- ounce deadsoft tin-plated copper foil backing and an aggressive pressure-sensitive acrylic adhesive.

The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate.

Features :
- Backing : Embossed tin-plated copper
- Adhesive : Acrylic
- Backing thickness : 0,04 mm
- Total thickness : 0,10 mm
- Adhesion to steel : 3,8 N/10mm
- Breaking strength : 44 N/10mm
- Thermal class : +155 °C
- UL510 recognition

Applications :
3M 1345 Tape is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing.
Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc. The tin plating on the copper foil backing facilitates soldering and improves resistance to oxidation and discoloration.
