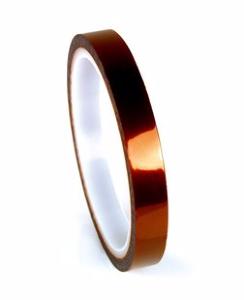

3M 1205 WIDTH 25 MM IN ROLL OF 33 M

3M 1205 POLYIMIDE FILM TAPE - 25 MM x 33 M

3M Polyimide Film Electrical Tape 1205 is a 1-mil polyimide film backing with acrylic adhesive.

Its acrylic pressure-sensitive adhesive allows it to be used at 311ºF (155ºC), and it is UL 510 Flame Retardant.

- Backing : Polyimide

- Color : Amber

- Adhesive : Acrylic

- Backing thickness : 0,025 mm

- Total thickness : 0,08 mm

- Adhesion to steel : 3,8 N/10mm

- Elongation at break : 55 %

- Thermal class : +155 °C

- Dielectric Breakdown : 7500 V

- UL510 recognition

Tape 1205 is used for high temperature electrical applications in which a tough, thin insulating material is required for wrapping coils, transformers, capacitors, wire harnesses, and for anchoring leads / terminal boards.

It also is used in printed circuit board assembly as a wave solder masking tape.
