3M 1205 WIDTH 19 MM IN ROLL OF 33 M

(Code: 92-10043-03)

Data Sheet
Currently out of stock.
3M 1205 WIDTH 19 MM IN ROLL OF 33 M

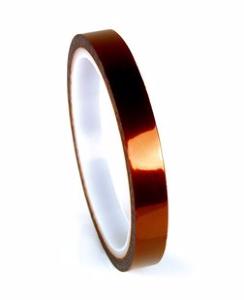

3M 1205 POLYIMIDE FILM TAPE - 19 MM x 33 M



3M Polyimide Film Electrical Tape 1205 is a 1-mil polyimide film backing with acrylic adhesive.

Its acrylic pressure-sensitive adhesive allows it to be used at 311ºF (155ºC), and it is UL 510 Flame Retardant.

Features :
- Backing : Polyimide
- Color : Amber
- Adhesive : Acrylic
- Backing thickness : 0,025 mm
- Total thickness : 0,08 mm
- Adhesion to steel : 3,8 N/10mm
- Elongation at break : 55 %
- Thermal class : +155 °C
- Dielectric Breakdown : 7500 V
- UL510 recognition

Applications :
Tape 1205 is used for high temperature electrical applications in which a tough, thin insulating material is required for wrapping coils, transformers, capacitors, wire harnesses, and for anchoring leads / terminal boards.
It also is used in printed circuit board assembly as a wave solder masking tape.
