3M 1170 WIDTH 19 MM IN ROLL OF 16,5 M

(Code: 92-10062-04)

Data Sheet
44.34 €
Discontinued Product
Currently out of stock.
(Sold in packs of 12)
Add to cart

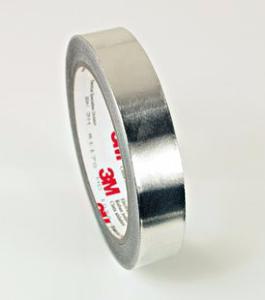

3M 1170 WIDTH 19 MM IN ROLL OF 16,5 M

3M 1170 ALUMINIUM FOIL TAPE - 19 MM x 16,5 M



3M Aluminum Foil Tape 1170 consists of a 1-ounce rolled aluminum foil backing and an electrically conductive, pressure-sensitive acrylic adhesive.

This tape is supplied on a removable liner for easy handling and die-cutting. It has excellent solder ability.

Features :
- Backing : Aluminium
- Adhesive : Acrylic
- Backing thickness : 0,05 mm
- Total thickness : 0,08 mm
- Adhesion to steel : 3,8 N/10mm
- Breaking strength : 35 N/10mm
- Thermal class : +155 °C
- UL510 recognition

Applications :
3M Aluminum Foil Tape 1170 is typically used as an EMI/RFI shielding tape for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials.
