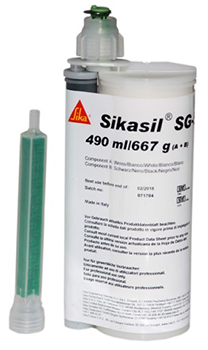

SIKASIL SG500 BLACK - CARTRIDGE 490 ML
Sikasil SG 500 is a high performance structural silicone adhesive.
Characteristics
- Meets requirements of EOTA ETAG 002, EN 13022 and ASTM C 1184
- SNJF-VEC / VI-VEC recognized
- Fire rated (EN 11925-2 / DIN 4102-B1)
- Resistant to UV and weathering
- Provided with CE-mark according to ETAG 002, DoP 01 27 03 01 003 9 001000 1024, certified by Factory Production Control Body, 0757, certificate Nr. 0757-CPD-596-04-001 R1e, 2009-05-25
Application
- Ideal for struc-tural glazing, bonding of solar modules and other high-demanding industrial applications.
Technical characteristics
- Chemical base : 2-C silicone
- Colour :
Comp. A : White
Comp. B : Black
Mixture : Black
- Cure mechanism : Polycondensation
- Cure type : Neutral
- Density :
Comp. A : 1,4 kg/l approx.
Comp. B : 1,1 kg/l approx.
Mixture : 1,37 kg/l approx.
- Mixing ratio A:B
by volume : 10:1
by weight : 13:1
- Viscosity at 0.89 s-1 :
Comp. A : 1.100 Pa.s approx.
Comp. B : 300 Pa.s approx.
- Consistency : Paste
- Température d’application : +5°C to +40°C
- Snap time at 23°C / 50% HR : 50 minutes approx.
- Tack-free time at 23°C / 50% HR : 240 minutes approx.
- Shore A-hardness : 45 approx.
- Tensile strength : 2,2 N/mm2 approx.
- Elongation at break : 300 % approx.
- 100% modulus : 1,1 N/mm2 approx.
- Movement accommodation capability : ± 12,5%
- Water vapor permeability (EN 1279-4) : 19 g H2O / m2·24 h·2 mm approx.
- Thermal resistance :
Permanent : 180°C approx.
Short term 4 h : 200°C approx.
1 h : 220°C approx.
- Service temperature : -40°C to +150°C approx.
|
