ELECTROLUBE TBS01K IN 1 KG CAN

(Code: 40-10509-02)

Data Sheet
Discontinued Product
Currently out of stock.

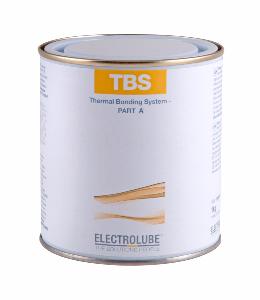

ELECTROLUBE TBS01K IN 1 KG CAN

ELECTROLUBE TBS - CAN 1 KG



Thermal Bonding Compound is a two part epoxy bonding system which utilises metal oxides to provide excellent thermal conductivity whilst being electrically insulating.

It is especially useful in the manufacture of heatsink assemblies where 'piggy back' arrangements are applied and where the manufacture design of heat sinks does not allow for welding or brazing techniques to be employed due to complexity or geometry of the fins.
TBS is also ideal for use as a bonding medium in surface mounting assemblies.

Properties :
- Two part epoxy bonding system
- Very high bond strength
- High thermal conductivity: 1.10 W/m.K
- Eliminates need for mechanical fixing by providing a permanent bond
- Wide operating temperature range: -40C to +120C
- Includes glass beads for a set thickness to be applied

Characteristics :
- Density : 1,85 gr/ml
- Température : -40 C / +120 C
- Thermal conductivity : 1,10 W/m.K
- RoHS : Yes
