3M 8943 WIDTH 200 MM IN ROLL OF 10 M

(Code: 90-20075-01)

Data Sheet
191.69 €
Not available. Standard delay: 15 days.
Add to cart

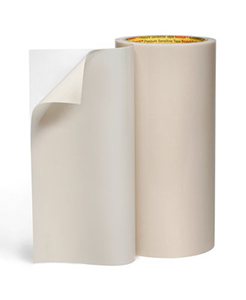

3M 8943 WIDTH 200 MM IN ROLL OF 10 M

3M 8943 THERMALLY CONDUCTIVE TAPE - 200 MM x 10 M



3M Thermally Conductive Adhesive Tape 8943 is designed to provide an efficient heat transfer path between heat generating components and heat sinks or other cooling devices.


The tape consists of a carrier, highly loaded with thermally conductive fillers, coated on one side (3M 8943) with a high temperature resistance acrylic pressure sensitive adhesive.

The specialized constructions securely bond the heat generating components to heat sinks and offers conductivity.
The tape is electrical insulating.

Features :
- Colour : Beige
- Thickness : 0,17 MM
- Temperature : -40 °C / +150 °C
- Thermal conductivity : 0,4 W/m.K

Applications :
Applications requiring thin bonding with good thermal transfer.
The tape performance properties have been primarily adapted to meet the demanding criteria for use in Automotive Electronic Thermal Management.
Typical applications are: Engine Control Units, ABS Systems, Gear Control Units.
