3M 69 WIDTH 25 MM IN ROLL OF 33 M

(Code: 92-10047-06)

Data Sheet
56.19 €
In Stock
(9 Item(s) In Stock)
Add to cart
Discount on quantity
From15
Price56.19 €53.39 €

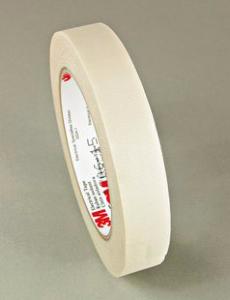

3M 69 WIDTH 25 MM IN ROLL OF 33 M

3M 69 GLASS CLOTH ELECTRICAL TAPE - 25 MM x 33 M



3M Glass Cloth Electrical Tape 69 is a white glass cloth tape with a hightemperature thermosetting silicone pressure-sensitive adhesive.

It is designed for use in 600-volt dry location applications motors, and transformers with and without varnish coating.
Key attributes like high mechanical strength and resistance to high temperatures provide excellent performance.

Features :
- Backing : Glass cloth
- Color : White
- Adhesive : Silicone
- Total thickness : 0,18 mm
- Adhesion to steel : 4,4 N/10mm
- Elongation at break : 5 %
- Range of use : -50 °C / +180 °C
- Dielectric Breakdown : 3000 V
- UL510 recognition

Applications :
- Insulating electric and induction-type furnace power supply leads
- Securing high-temperature, non-PSA insulation (such as asbestos and glass) in high-temperature areas
- Securing Scotch Fire Retardant Electric Arc Proofing Tape 77
- Splicing wire SF and SFF rated 302° F (150° C), 356° F (180° C)
- Reinsulating and repairing coils on mining machines
- Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes Insulating Class "H” dry-type transformer leads
- Insulating splices made on SA type wire in heat treat areas
- Especially suited to high-temperature applications
- Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection.
