3M 1245 WIDTH 9 MM IN ROLL OF 16,5 M

(Code: 92-10066-02)

Data Sheet
25.52 €
Currently out of stock.
Add to cart
3M 1245 WIDTH 9 MM IN ROLL OF 16,5 M

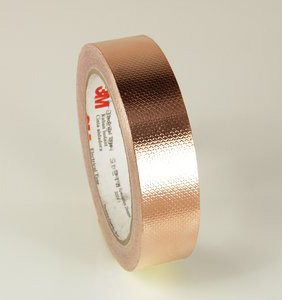

3M 1245 EMBOSSED COPPER TAPE - 9 MM x 16,5 M

3M 1245 Tape consists of an embossed 1- ounce deadsoft copper foil backing and an aggressive pressure-sensitive acrylic adhesive.

The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrat.

Features :
- Backing : Copper
- Adhesive : Acrylic
- Backing thickness : 0,04 mm
- Total thickness : 0,08 mm
- Adhesion to steel : 3,8 N/10mm
- Breaking strength : 44 N/10mm
- Thermal class : +155 °C
- UL510 recognition

Applications :
3M 1245 Tape is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing.
Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc.
The copper foil backing is solderable and resists oxidation and discoloration.
