3M 1181 WIDTH 19 MM IN ROLL OF 16,5 M

(Code: 92-10061-05)

Data Sheet
65.07 €
Currently out of stock.
(Sold in packs of 12)
Add to cart

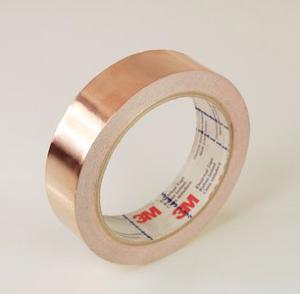

3M 1181 WIDTH 19 MM IN ROLL OF 16,5 M

3M 1181 COPPER FOIL TAPE - 19 MM x 16,5 M



3M 1181 Tape consists of a 1-ounce deadsoft copper foil backing and a unique electrically conductive pressure-sensitive acrylic adhesive.

- Deadsoft 1-ounce copper foil backing
- Conductive acrylic adhesive
- Supplied on a removable liner for easy handling and diecutting

Features :
- Backing : Copper
- Adhesive : Acrylic
- Total thickness : 0,07 mm
- Adhesion to steel : 3,8 N/10mm
- Breaking strength : 44 N/10mm
- Thermal class : +155 °C
- UL510 recognition

Applications :
3M 1181 Tape is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing.
Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc.
The copper foil backing is solderable and resists oxidation and discoloration.
